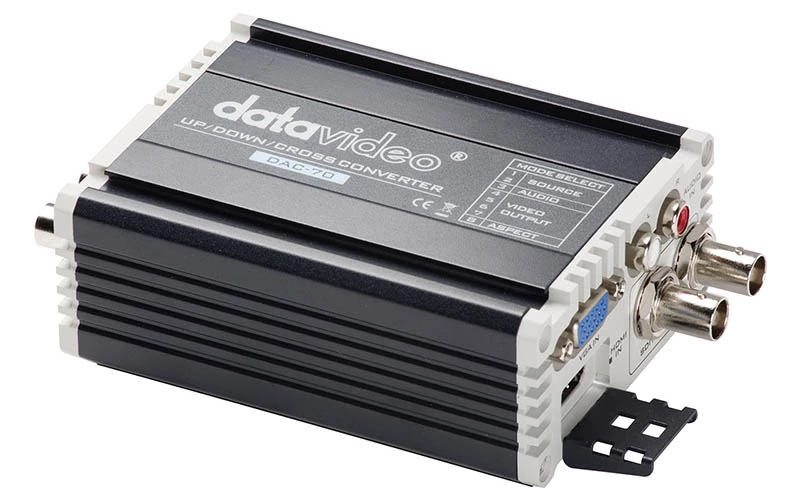

Stream7 DAC 70

Datavideo DAC-70 up/down/cross converter is designed to convert video signals from VGA, HDMI, SDI with Audio input to 3G/HD/SD SDI ouptuts.

Perfect for connecting a VGA/HDMI output from computer to SDI devices over long distance SDI cable. Solutons like lecture theater, church, auditorium room and conference hall.

Video Input formats



  • SD-SDI: 525i, 625i
  • 3G-SDI: 1080p60/50, 1080p59.94 (Level A)
  • HD-SDI: 1080i60/50, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i59.94, 720p60/50, 720p59.94
  • HDMI: (YUV/RGB): 1080p60/50, 1080p59.94, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i60/50, 1080i59.94, 720p59.94, 720p60/50, 576p, 480p, VGA, 1600x1200@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1280x1024@60Hz, 1024x768@60Hz, 800x600@60Hz

Video Output formats



  • SDI / HDMI (YUV: 4:2:2): 1080p60/50, 1080p59.94, 1080p23.98/29.97/24/25/30, 1080i60/50, 1080i59.94, 720P60/50, 720P59.94, 525i, 625i

Supported Audio formats



  • SDI embedded Audio: Up to 8-CH, PCM 48KHz
  • HDMI embedded Audio: up to 8-CH, PCM 96KHz
    - Stereo audio input: 2-CH, PCM 48KHz

To hire our DAC 70 or any other equipment from our hire stock contact us:
